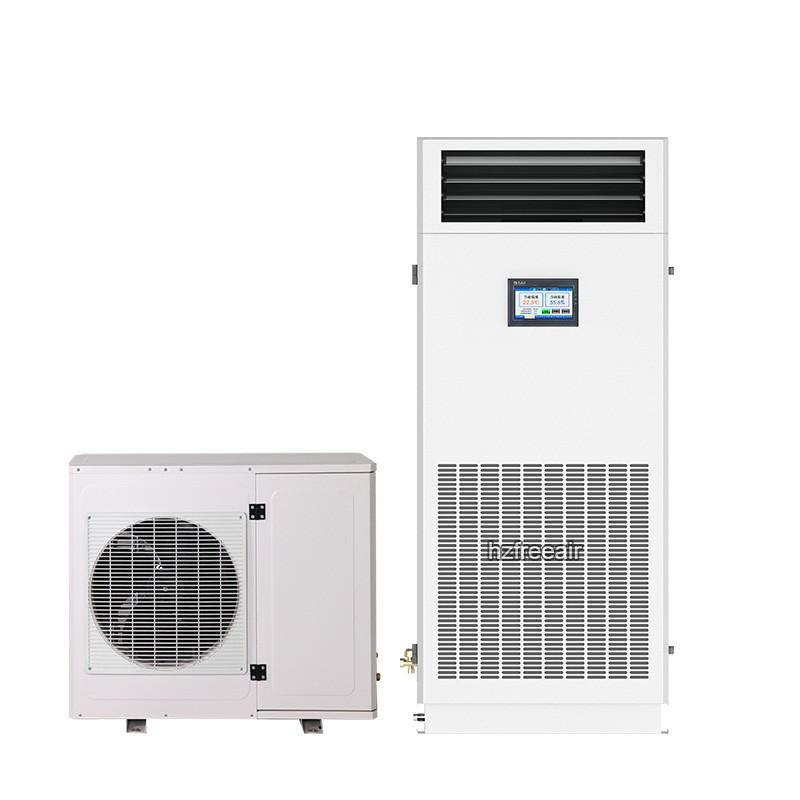

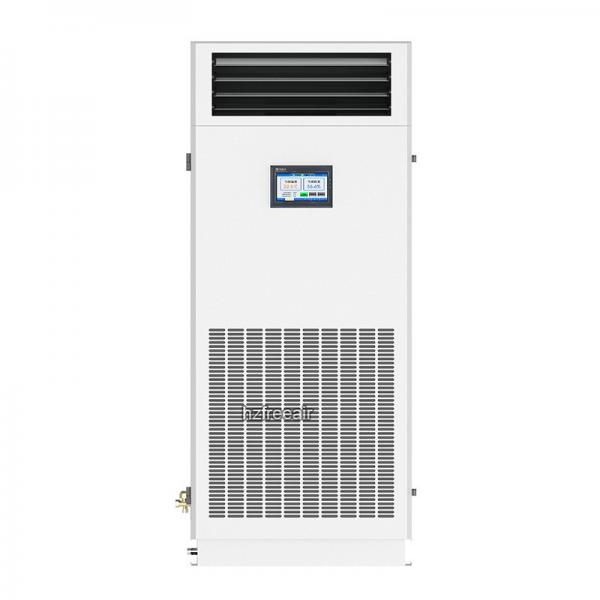

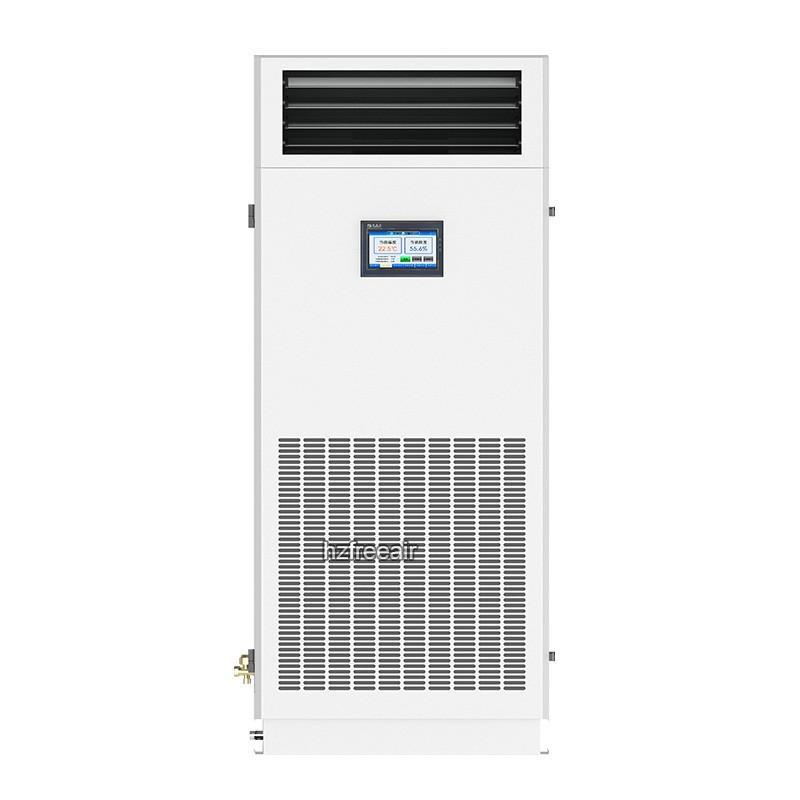

Name: 5.2KW Cooling Capacity Precision Air Conditioner Thermostat Dehumidifier Humidistat Unit Industrial Dehumidifier for Laboratory

Model Number: FL-HF5.2

Product Features:
1.Adopting famous brand compressors,like the Copeland,Panasonic,Daikin etc.
2.Adopting capillary or external balanced type system,more stable,More efficient.
3.Temperature control range 18-28℃±2℃;Humidity control rang40-75%±5%;More higher accuracy is in option.
4.Foor standing type,ceiling mounted type,ducted connection type etc is available.



 Model No. FL-HF5.2
 Voltage 380V/50HZ/3PH
 Cooling capacity 5.2KW
 Heating capacity 3KW
 Capacity(30℃,RH80%) 160L/D
 Humidifier capacity 2KG/H
 Air volume of indoor machine 1000m3/h
 Temperature/Humidity control range 18~30℃±1℃;RH40~75%±5%
 Refrigerant R22/R410A/R407C
 Total power 5.3KW

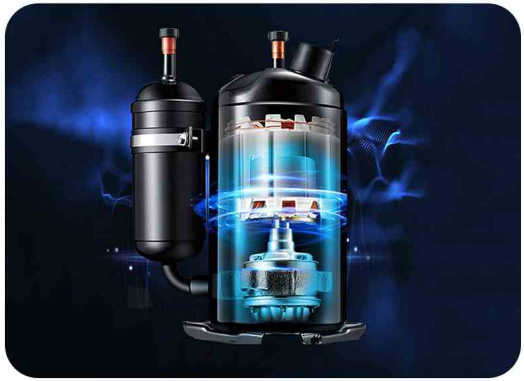

Famous brand compressor

Famous brand compressors provide more stable and efficient performance.More longer service life.

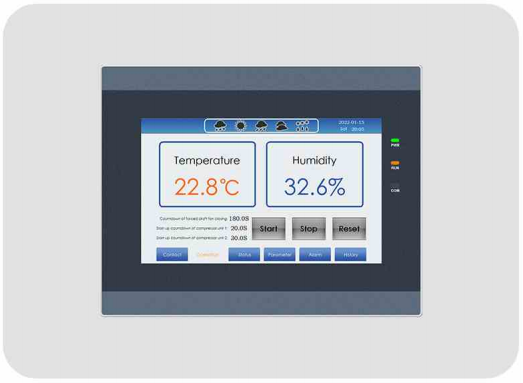

PLC with Large 7'', Touch Screen

Intelligent control system, easy to operate, totally automatically running,

no need person on duty. Siemens, Carel, Syslab etc for option.

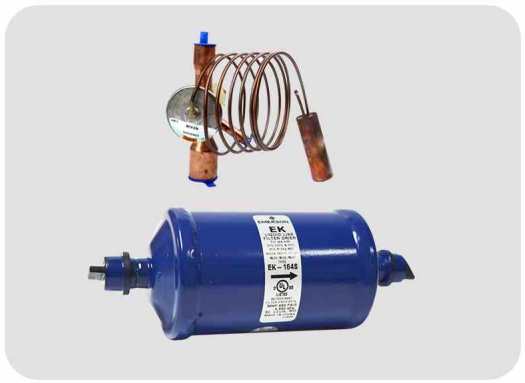

External balance type

We adopting external balance type with Emerson expansion valve and dry filter,

ensures the optimal adjustment ability of temperature sensing components,

long service life, and high compressive strength.

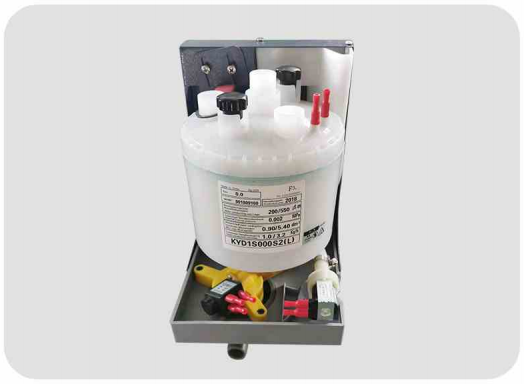

Electrode humidifier

The electrode humidifier is specially applied to the precision air conditioner,

which has fast humidification rate and high efficiency. Easy to maintain and replacement.

Wet membrane humidifier can also be available.


Suitable Area:

* Offices, Libraries, Computer rooms, Precision instrument rooms, Hospitals, Warehouses

* Chemical fiber, Pharmaceuticals, Glass, Food, Electronics, Metallurgy, Printing, Basements

* Electricity, Telecommunications, Cigarettes, Printing, Tea, Leather, Textiles

* Medical Instrument, Vegetables Frozen, Precise Instrument

* Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

* Lithium Battery Industry, Biotechnology Pharmaceutical Industry


During the using process, it can help users to eliminate various losses caused by humidity, and make the production

and storage of products can be carried out in the right humidity, so as to ensure the quality of the products.


Why Choose Us

1)With a strong technical team with more then 10 years experience in refrigeration industry.

2)A variety of dehumidifiers,humidifiers and air conditioning units can be available,we also supply the thermostat&humidistat units.

3)We have not only the high quality products and competitive price, but also have excellent services too.

4)OEM & ODM are welcomed.
