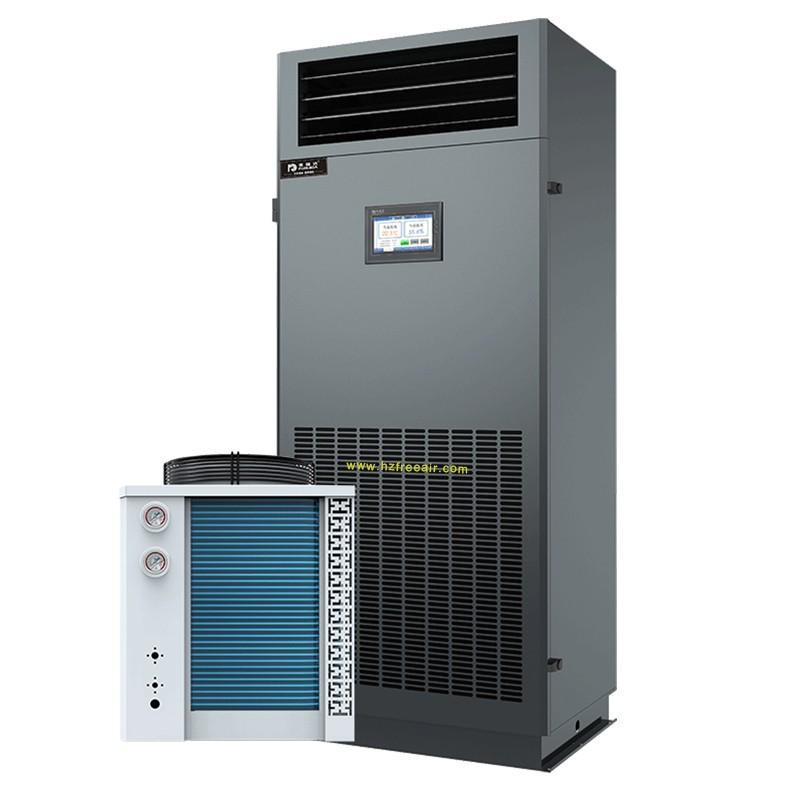

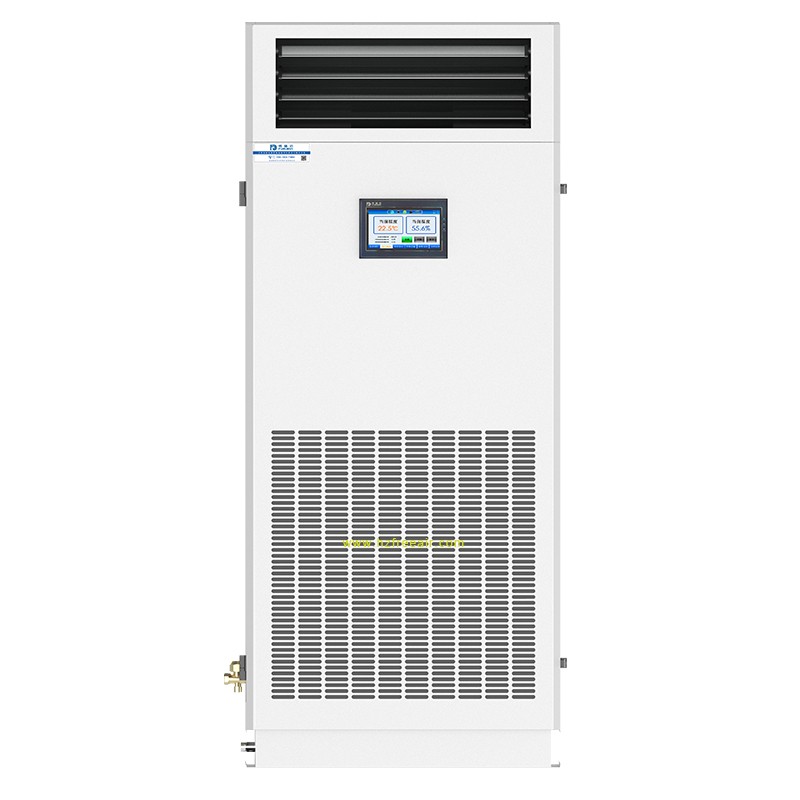

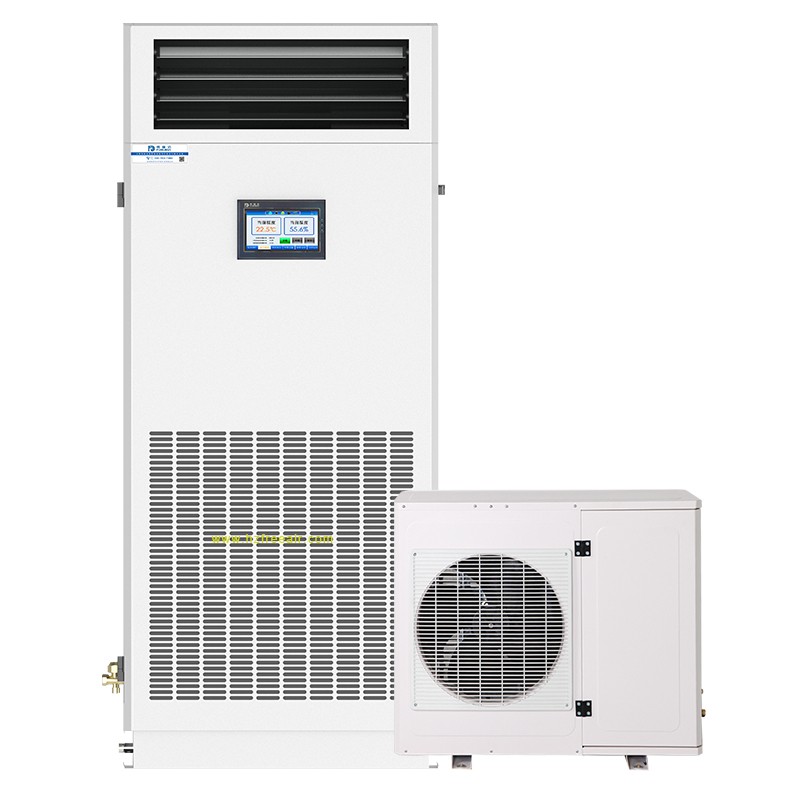

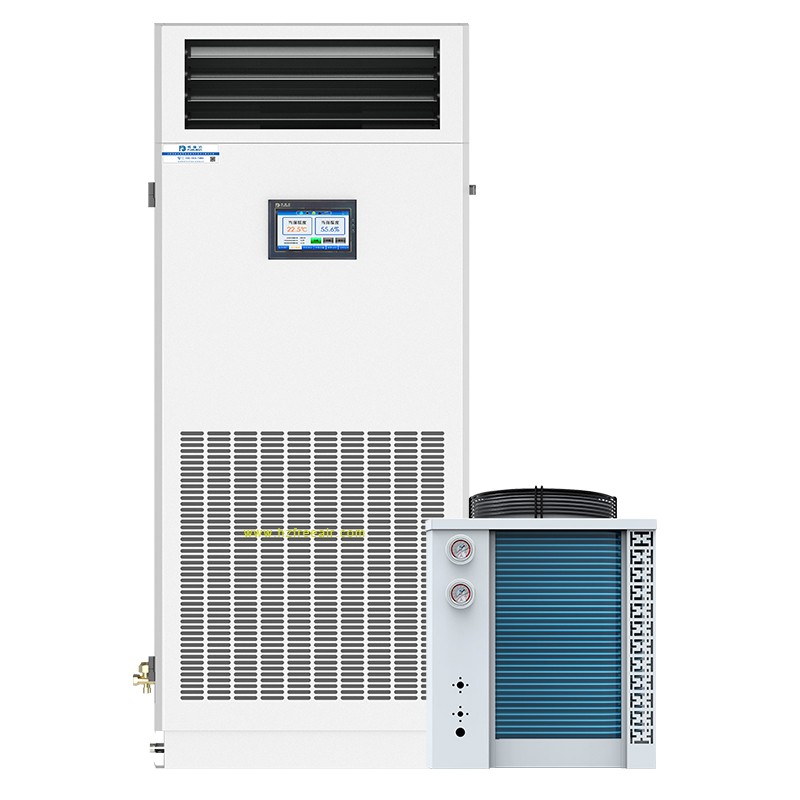

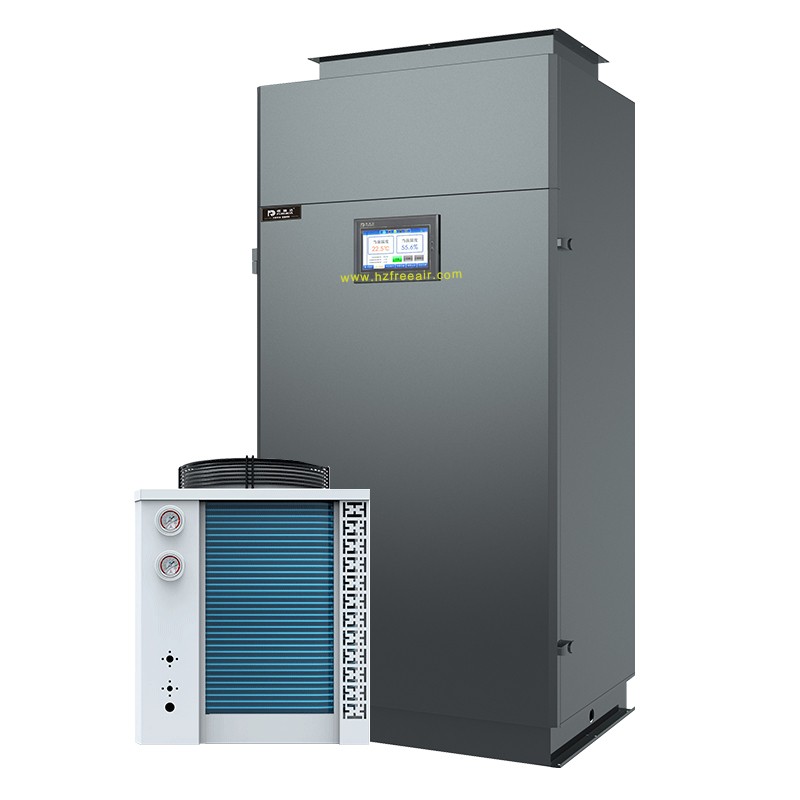

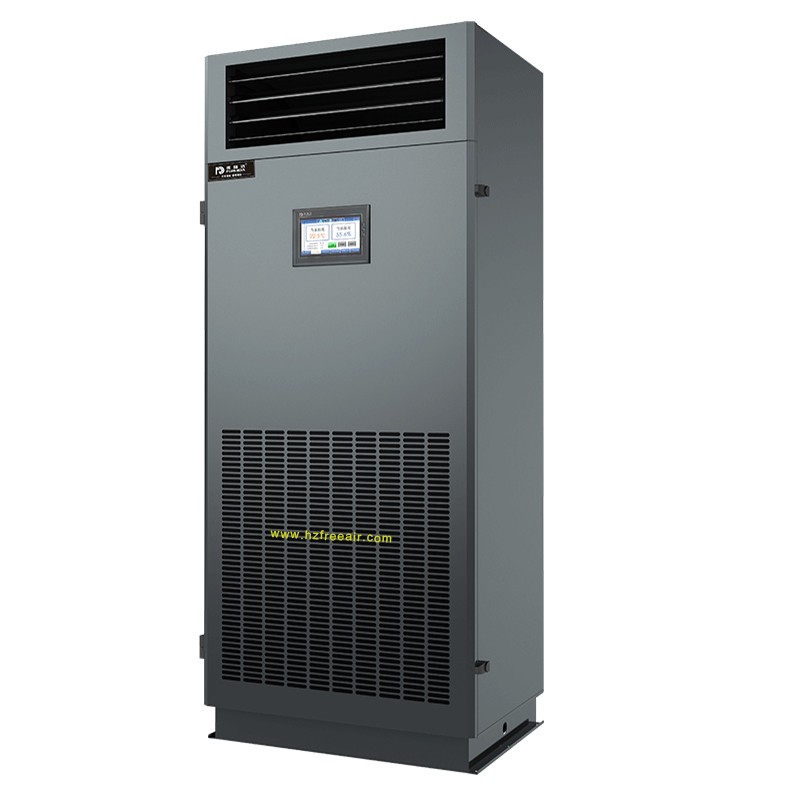

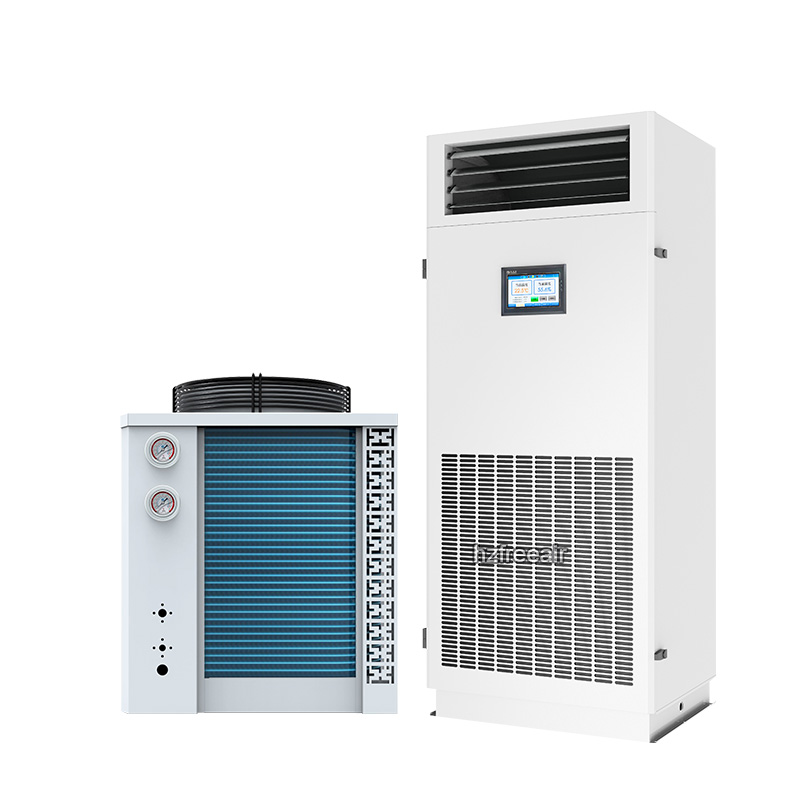

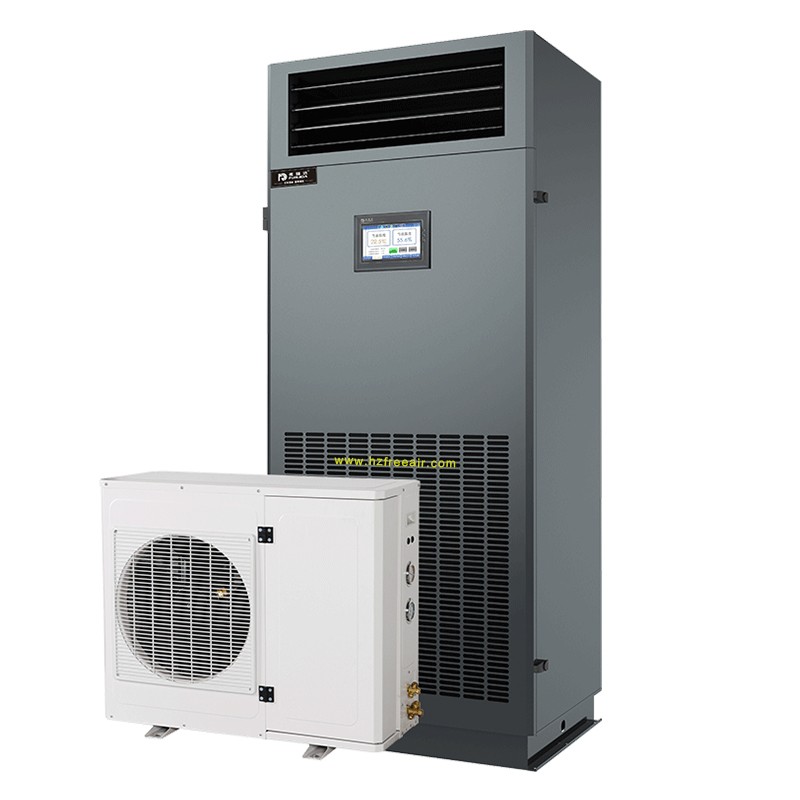

Model Number: FL-HF21.5
Features:
1)Split design,ultra-low noise
2)Panasonic compressor, long service life
3)Programmable PLC controller
4)Brand electronic spare parts,stable quality
5)RS485(optional)
| Model | FL-21.5C |
| Cooling capacity | 21.5KW |
| Heating capacity | 9KW |
| Suitable area | 50-62㎡ |
| Air volume | 4300m³/h |
| Temperature/humidity control range | 16-28℃±1℃；RH45-75%±5% |
| Refrigerant gas | R22/R410A/R407C |
| Heating type | Electrical heater |
| Humidification type | Atomization/Wet film humidification |
| Water intake method | Automatic or manual |
| Humidity capacity | 4kg/h |
| Voltage of indoor machine | 220V/50HZ |
| Voltage of outdoor machine | |
| Relay | Schneider |
| AC contactor | |
| Control system | Programmable PLC with LCD touch screen |
| Power input | 20kw |
| Indoor machine dimension(L*W*H) | 1220*740*2050mm |
| Outdoor machine dimension(L*W*H) | 785*780*1150mm |
| Indoor machine N.W. | 350KG |
| Outdoor machine N.W. | 100KG |
